Dual armature in-ear monitor
M20
A modern revival of one of AAW's earliest models. M20 pairs a large-format bass armature woofer with AAW's proprietary NOVA nozzle-less open vented armature driver, then shapes them through a 2-way passive crossover and precision 3D-printed acoustic chamber. Available in universal or custom fit.
Price$299.00 SGD
- Dual BA design
- NOVA driver
- 2-way crossover
- Universal / custom
Design Story
The original idea, rebuilt for modern listening.
The original M20 was one of AAW's earliest launching models in 2015. In 2023, the name returns with digitized acoustic design, 3D printing, and NOVA driver technology.
This is not a race to add more drivers. M20 is about using a simple dual-armature architecture well: a large and fast bass armature woofer moves air with depth and layering, while the NOVA driver brings full-bodied vocal presence and fine ambience detail.
The result is a monitor designed for band performances, performing artists, worship events, audio engineering, and listeners who want an immersive, source-revealing experience without an oversized driver count.
Fitment Options
Choose universal convenience or custom isolation.
M20 is available as a universal-fit monitor with an ear tip kit or as a custom-fit monitor built from ear impressions. Both keep the compact dual-armature M20 concept, with custom units adjusted for the impression-built shell.

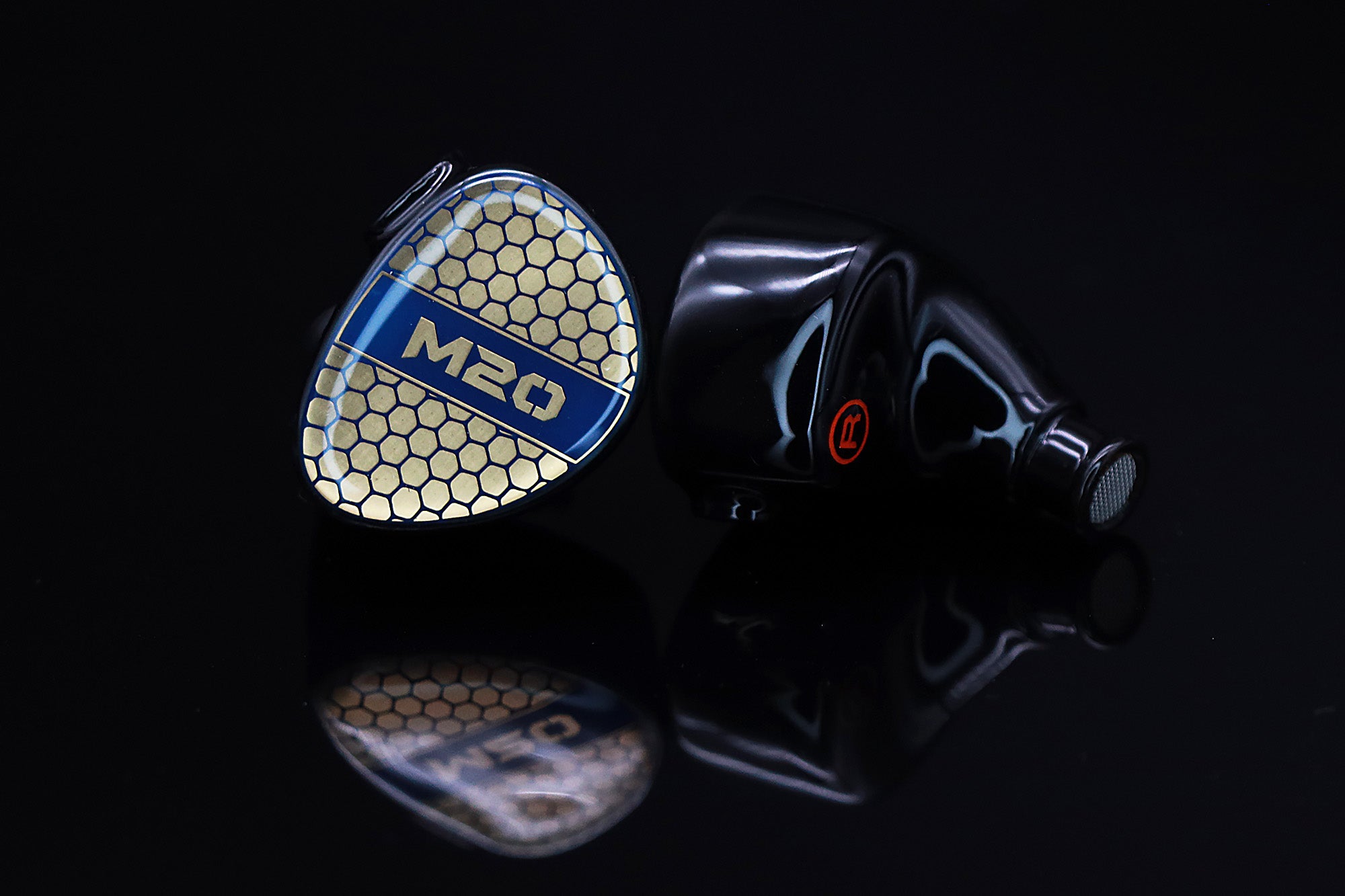

Universal fit
Ready-to-wear M20
Ships with assorted ear tips and a size tray for quick seal checks, everyday handling, and easy sharing between listening setups.
Current selection
Custom fit
Built from impressions
Made from ear impressions for a personal seal, stronger passive isolation, and a monitor shape matched to long sessions.
View custom

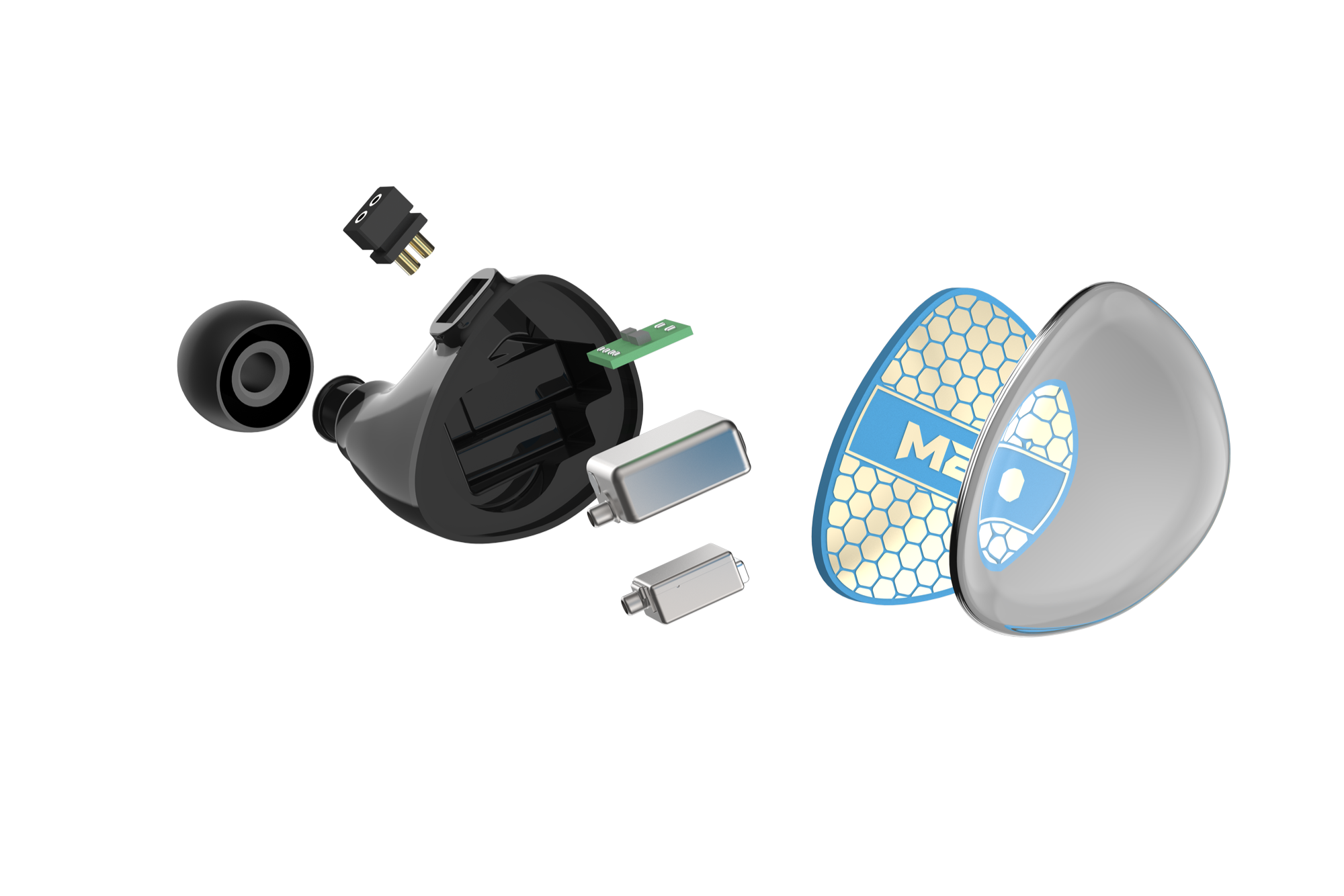

Internal Layout
Two drivers, placed with intent.
The 3D-printed enclosure and acoustic chamber allow driver and nozzle placements to be tuned through simulation, then produced consistently. The NOVA armature sits deep in the nozzle to reduce pressure decay and resonance, while the bass armature forms the foundation.
Acoustic Architecture
NOVA driver. Bass armature woofer. One coherent 2-way design.
M20 houses a large-format bass armature woofer and AAW's proprietary NOVA driver. The nozzle-less open vented armature is embedded deep into the 3D-printed nozzle, placing it closer to the eardrum to preserve pressure and control resonance. A 2-way passive crossover and dual-bore output keep the driver bands cleanly organized.
M20
NOVA Dual Armature
2 drivers across a 2-way passive crossover
1 x
Bass Armature Woofer
1 x
NOVA Open-Vented BA
2-way
Passive Crossover
Dual
Bore Acoustic Output
Key Features
- Large-format bass armature woofer for deep, layered low-end
- NOVA nozzle-less open vented armature embedded into the 3D-printed nozzle
- 2-way passive crossover and dual-bore acoustic output
- Electroless Immersion Gold honeycomb faceplate
- Digitized enclosure and acoustic chamber design
Sound Signature
Deep, layered, full-bodied, and detailed.
M20 is tuned to show what armature drivers can do when their physical placement and chamber geometry are doing real work. The bass armature brings speed and body, while NOVA keeps vocal and ambience detail close, clean, and immediate.
Layered depth
A large-format bass armature woofer moves air with speed and pressure, giving M20 a deeper foundation than a typical compact 2BA monitor.
Full body
NOVA sits close to the nozzle exit so vocal presence stays direct, solid, and free from the pressure decay of long acoustic tubes.
Fine ambience
The open vented armature helps reveal space, trailing harmonics, and ambience detail without leaning on an exaggerated driver count.
Scales upward
The 106 Ohm high-impedance design rewards better sources and reflects the quality of the mastering and playback chain.
Faceplate Craft
Electroless Immersion Gold, scaled down to an IEM face.
M20's blue-and-gold honeycomb faceplate uses an Electroless Immersion Gold process to hold complex geometry across a very small surface. The finish gives the monitor a clear visual identity without hiding the practical shell geometry underneath.
Accessories and Warranty
The complete M20 kit.
01

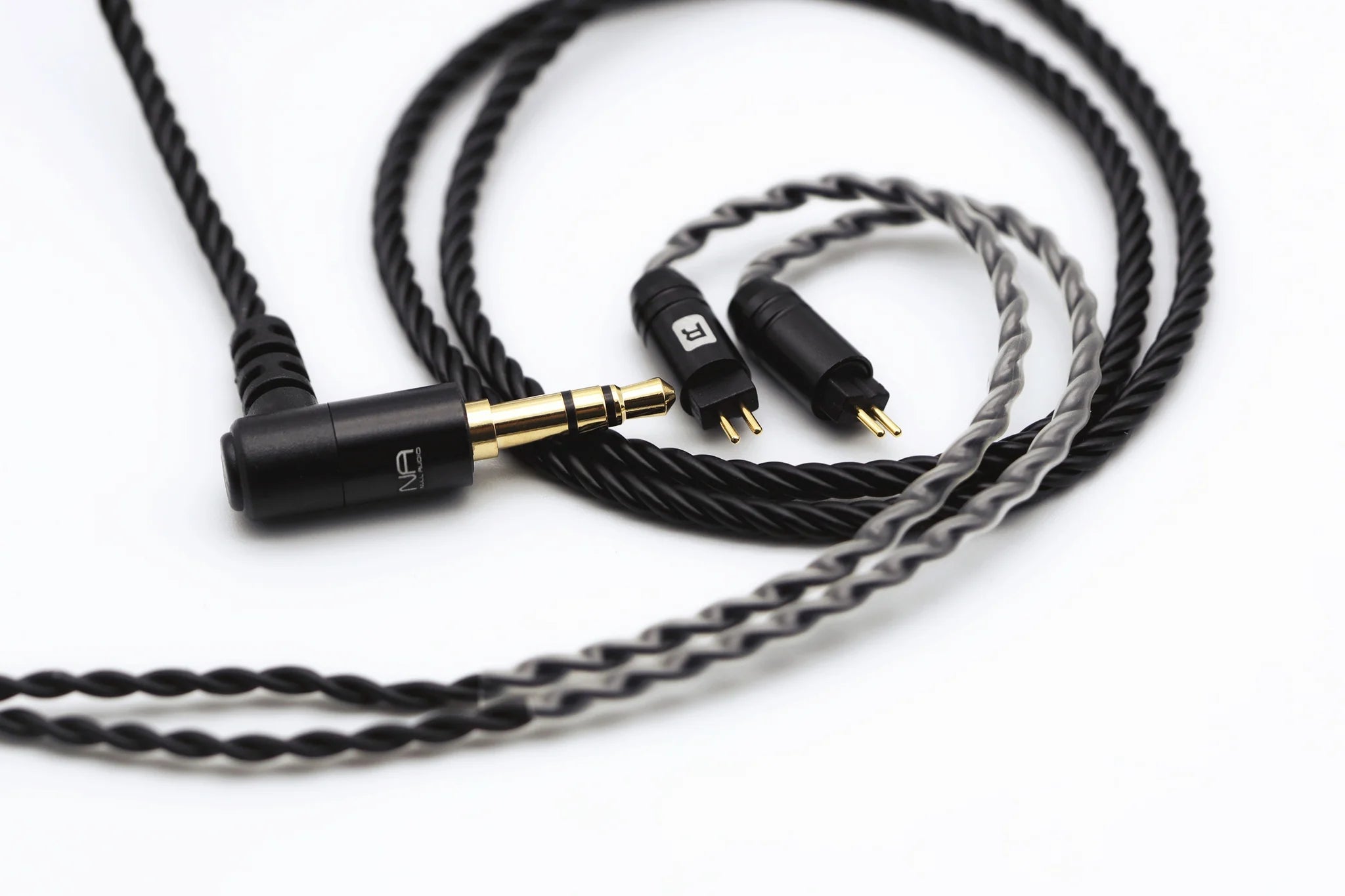

Brevity Plus cable
48 inch Null Audio Brevity Plus copper cable for daily use and stage handling.
02
Assorted ear tips
Assorted silicone tips help dial in fit, seal, bass pressure, and comfort.
03
Ear tip size tray
Organized ear tip sizes make it easier to compare fit, seal, and bass response before settling on the right pair.
04
AAW carry case
Protects the monitors, cable, and tip kit when you move between home, studio, and stage.
Specifications
Simple architecture, serious numbers.
Dual balanced armatures, 2-way passive crossover, 10Hz to 40kHz wide-band response, high sensitivity, and high impedance for cleaner source matching.
- Driver Count
- 2 balanced armatures
- Crossover
- 2 Way Passive
- Sensitivity
- 115dB
- Impedance
- 106Ohm
- Frequency
- 10Hz - 40kHz
- Distortion
- <0.5%
- Acoustic Output
- Dual bore design
- Fit Options
- Universal / custom
- Warranty
- 2-year limited
FAQ
Before you choose M20
What is the M20 driver configuration?
M20 uses two balanced armature drivers: a large-format bass armature woofer and AAW's proprietary NOVA nozzle-less open vented armature driver.
Why use only two drivers?
The design focuses on driver implementation instead of driver count. Precise placement, acoustic chamber geometry, and the 2-way crossover let each driver work in its intended range.
What does NOVA do?
NOVA is embedded deep into the 3D-printed nozzle. Its proximity to the eardrum helps reduce sound pressure decay and unwanted resonance from a typical tubed balanced-armature design.
Is M20 available in universal and custom fit?
Yes. Universal fit ships with assorted ear tips and a size tray. Custom fit is built from ear impressions for a personal seal and stronger isolation. Specifications and internal parts for custom versions may differ slightly to accommodate the custom housing.
What comes in the box?
48 inch Null Audio Brevity Plus copper cable, AAW carrying case, cleaning cloth, assorted ear tips, and a 2-year limited warranty.
Owner Reviews
M20 listening impressions
Built by Advanced AcousticWerkes
Singapore IEM craft, shaped by listening.
Those who listen will find the way.
Advanced AcousticWerkes (AAW) is a Singapore-based IEM manufacturer founded in 2014 by Kevin Wang. AAW designs and builds custom and universal in-ear monitors across dynamic, balanced armature, electrostatic, planar, and hybrid platforms.
M20 revives one of AAW's earliest names with modern 3D acoustic design, a NOVA open-vented armature, and a compact dual-armature architecture built for real listening.
