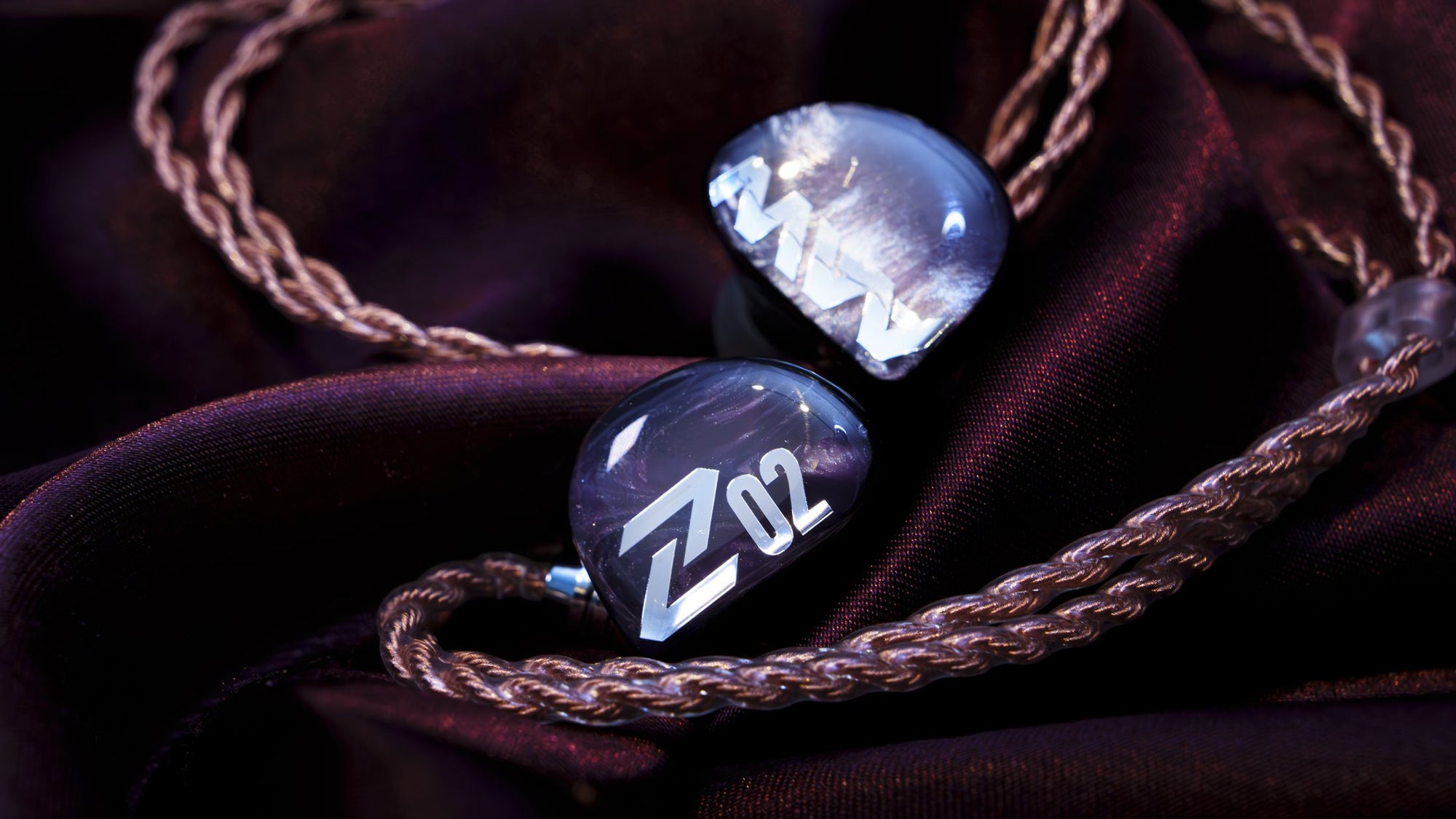

Planar magnetic hybrid in-ear monitor
Z02
A compact dynamic-planar hybrid voiced for a lively, modern signature. The miniature planar magnetic tweeter handles vocals and treble with clean, extended detail; the 10mm graphene dynamic driver supplies the low-end weight. Physical crossover, 3D-printed acoustic chamber, daily-ready universal fit.
Price$199.00 SGD
- Dynamic-planar hybrid
- 10mm graphene driver
- Miniature planar tweeter
- Physical crossover
Design Story
A dynamic-planar hybrid with AAW digital acoustic design.
Z02 pairs a 10mm graphene dynamic driver with a miniature planar magnetic tweeter in a single compact universal. The dynamic supplies low-end weight that all-BA designs can't quite reach; the planar keeps vocals and treble clean, extended, and free of the tube resonance that comes with traditional balanced armature treble paths.

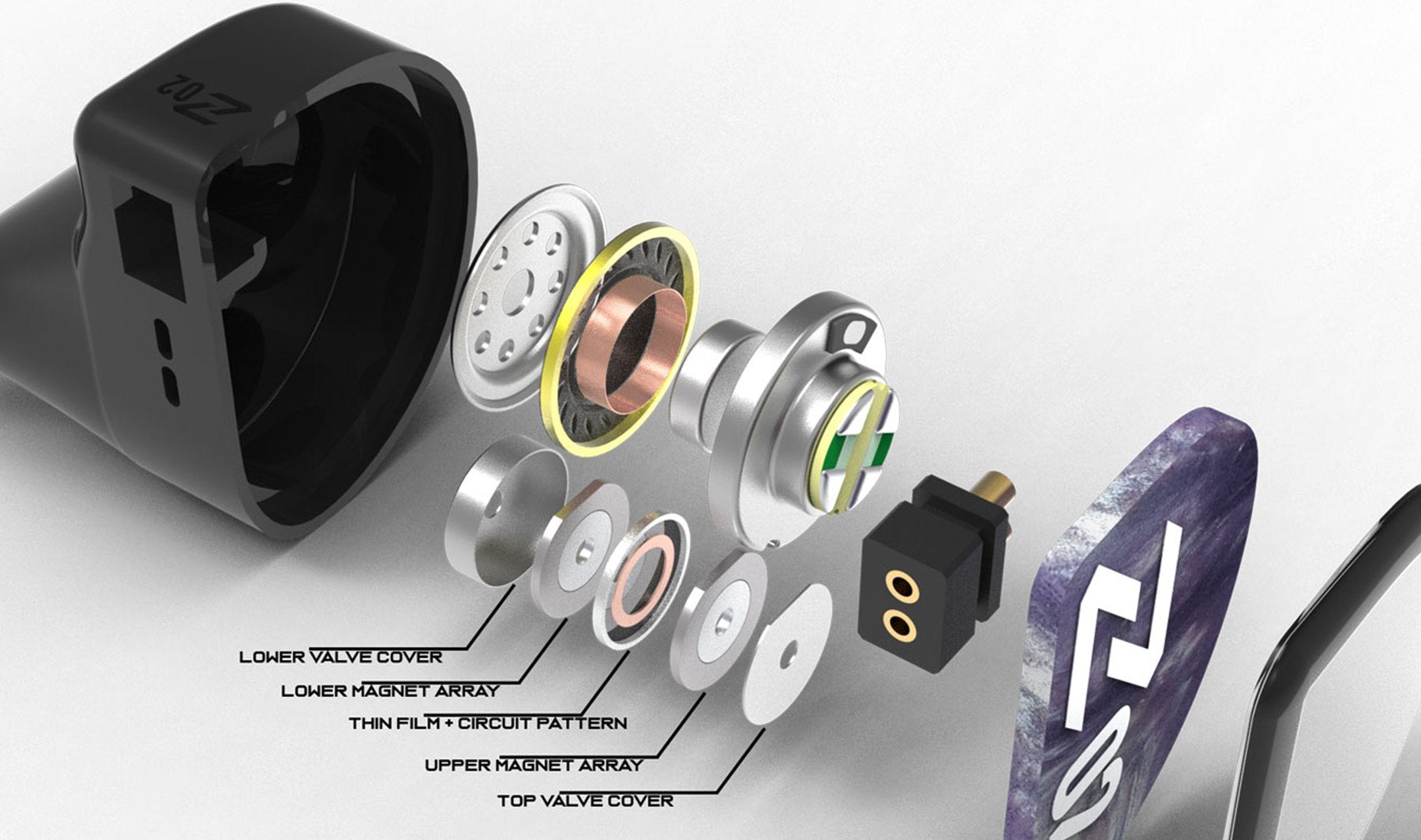

The planar magnetic tweeter is embedded deep into the Z02's 3D-printed shell. Its dedicated cavity design eliminates sound pressure decay and unwanted resonance common to traditional tubed balanced armature designs. The thin diaphragm responds quickly to signal changes, giving Z02 accurate dynamics, low distortion, and a consistent soundstage.
With a wholly digitized design process, Z02 employs AAW third-generation digital enclosure and acoustic chamber design. Driver and nozzle placements are simulated through hundreds of iterations to determine ideal phasing and response, then 3D printed to precision for production consistency.
Suitable for rising artists, band performances, streaming platforms, worship events, audio engineering, and anybody who appreciates a critical listening experience.
Fitment Options
Designed for a stable universal seal.
Z02 ships with assorted ear tips so listeners can tune seal, comfort, bass weight, and treble energy by fit. The compact shell is shaped through AAW's digital enclosure process for ergonomic daily use.
Acoustic Architecture
Planar speed. Graphene low end. One coherent physical crossover.
The miniature planar magnetic tweeter handles upper detail with low distortion, wide dispersion, and fast transient response. The 10mm graphene dynamic driver uses a rigid ultra-thin diaphragm and physical low-pass filtering to keep bass focused with minimal overlap. Driver placement and acoustic chambers are digitally simulated, then 3D printed for consistency.
Planar Magnetic Hybrid
Miniature planar tweeter with 10mm graphene dynamic low end
1 x 10mm
Graphene Dynamic
1 x
Planar Tweeter
2-Way
Physical Crossover
3D Printed
Acoustic Chamber
Key Features
- Miniature planar magnetic tweeter
- 10mm graphene dynamic driver
- Physical 2-way hybrid crossover
- AAW third-generation 3D-printed acoustic chamber
- OCC copper internal wire
Sound Signature & Frequency Response
Modern, lively, and measured.
Z02 is tuned with a natural and robust sub-bass foundation, clear vocal presence, carefully managed treble extension, and a smooth fatigue-free presentation. The frequency response reflects the dynamic-planar crossover balance and AAW's 3D-printed chamber tuning.
Robust sub-bass
The graphene dynamic driver gives Z02 a physical bass foundation that all-BA designs cannot reproduce in the same way.
Clean vocal focus
The planar tweeter keeps vocals articulate and immediate without pushing the presentation into harshness.
Extended detail
Fast planar transient response preserves treble texture, cymbal air, and micro-detail.
Stable imaging
Digitized driver placement and chamber design help maintain coherent timing and a consistent soundstage.
Low distortion
The evenly driven diaphragm reduces non-linear behavior and harshness in the upper range.
Compact size
Miniaturized planar technology fits inside an IEM shell without giving up treble performance.
Fast dynamics
The thin diaphragm responds quickly to transient sounds and dynamic changes.
Wide dispersion
Uniform sound dispersion supports a more consistent soundstage across listening angles.
Cabling and Accessories
The everyday kit.
01

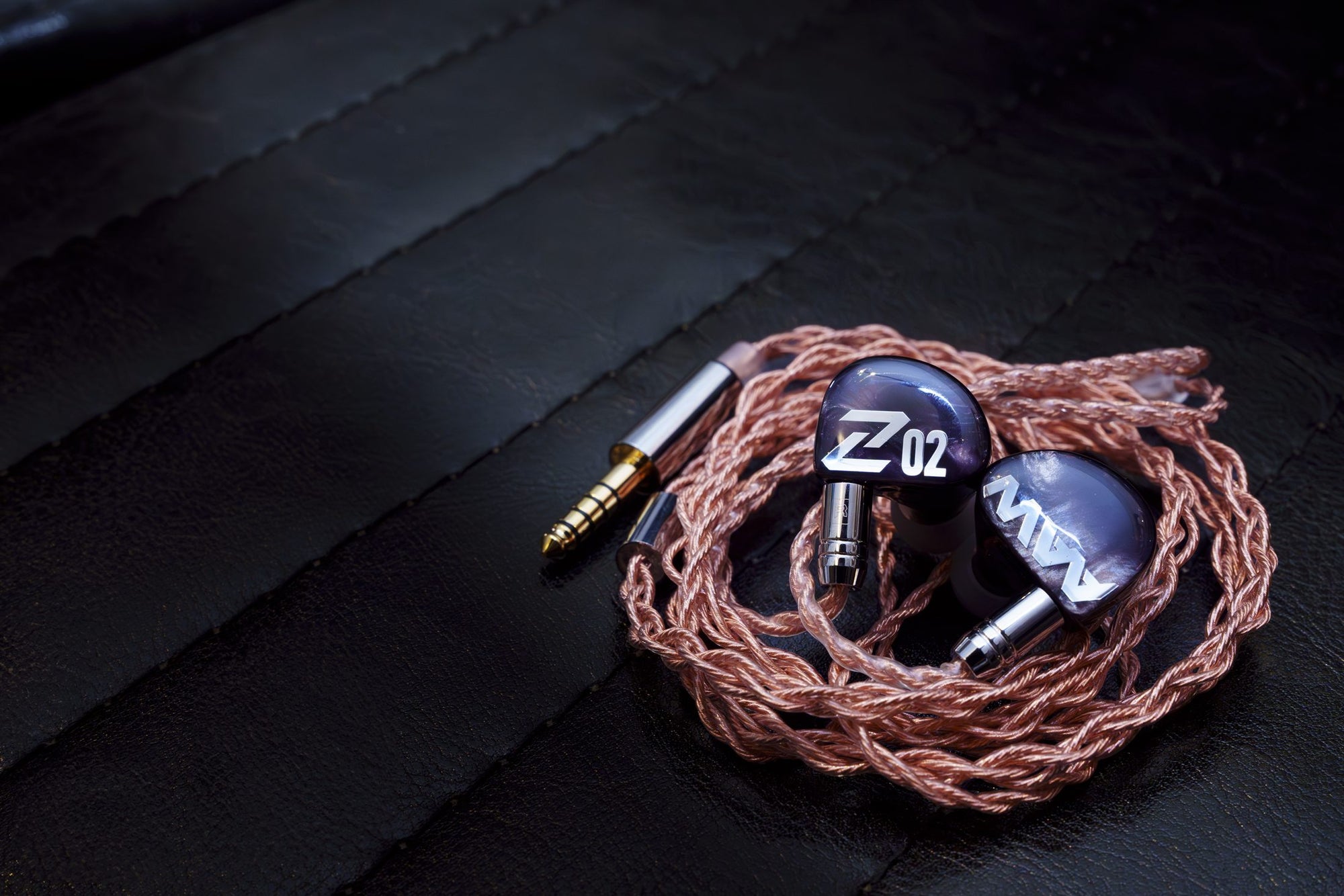

Brevity Pro Plus cable
48 inch Null Audio Brevity Pro Plus OCC detachable cable for daily portable use.
02

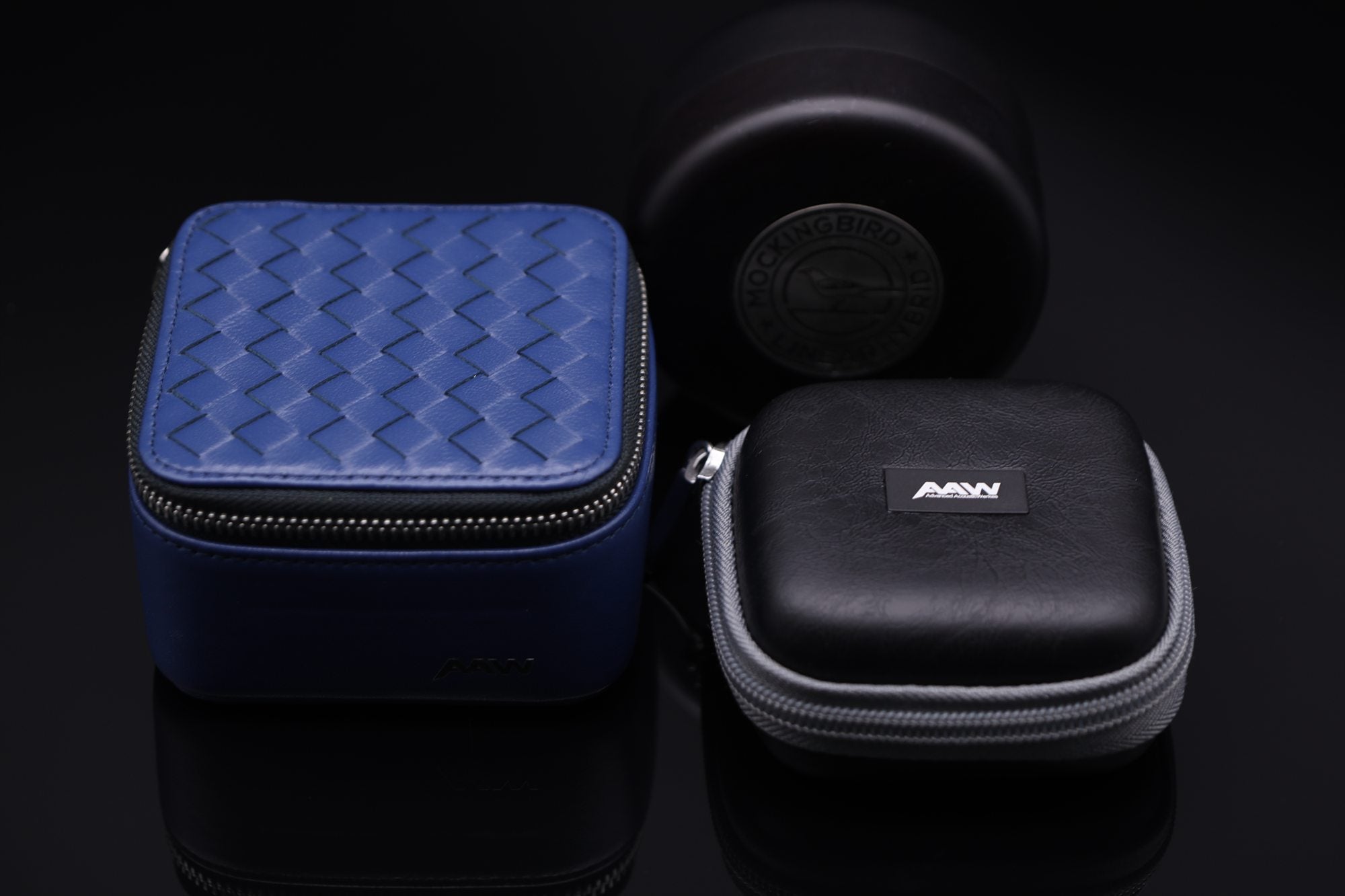

AAW carrying case
Semi-rigid zipper case protects your monitors, cable, and tips on the go.
03
Portable protection
The zip case keeps Z02, cable, and tip kit organized in a compact travel footprint.
04

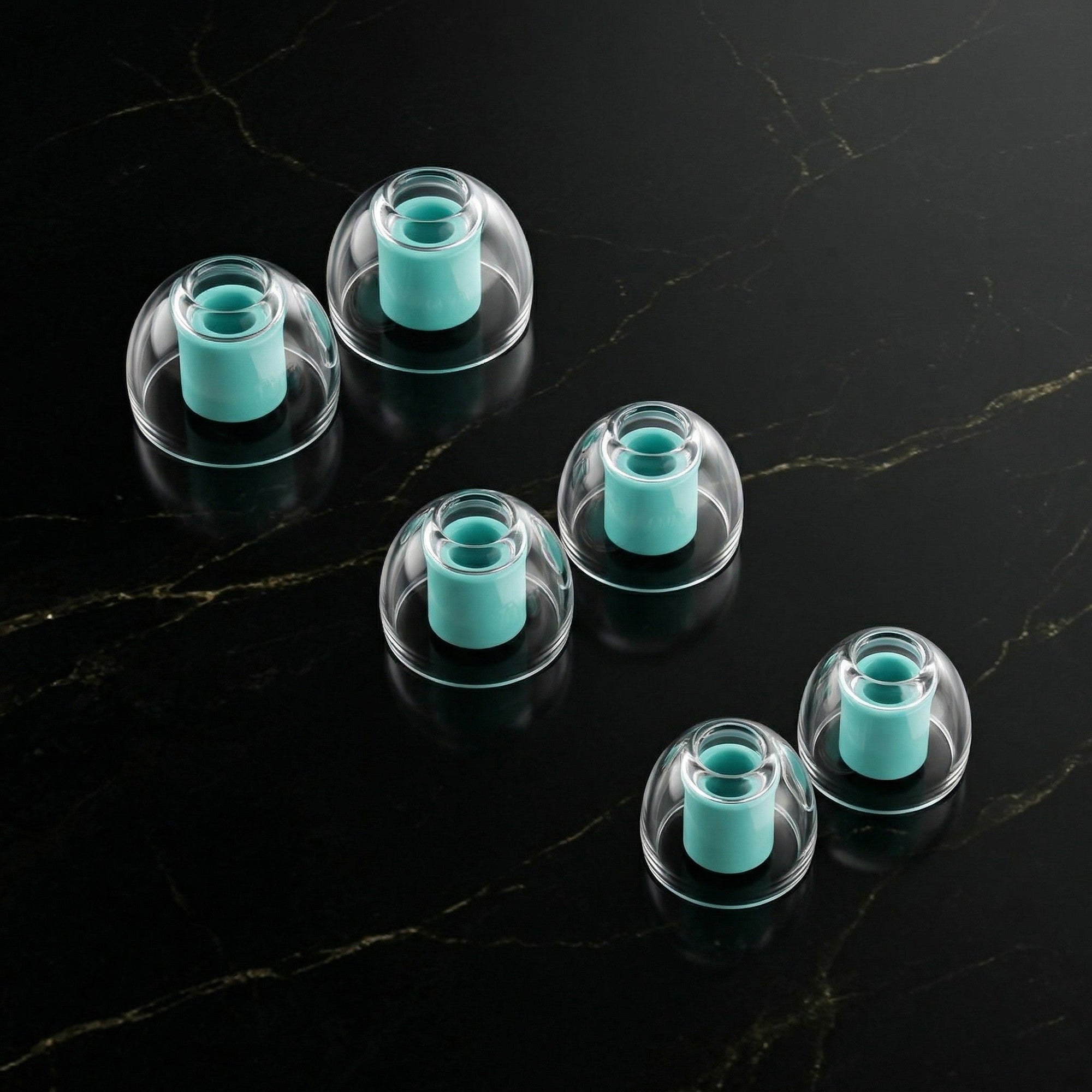

Assorted ear tips
Multiple tip options for fit checks, bass control, treble balance, and long-session comfort.
Specifications
Two-driver dynamic-planar numbers.
Miniature planar magnetic tweeter. 10mm graphene dynamic driver. Physical crossover. OCC copper internal wire. 10Hz to 40kHz. 18 Ohm.
- Driver Count
- 2
- Crossover
- Physical
- Sensitivity
- 105dB
- Impedance
- 18Ohm
- Frequency
- 10Hz - 40kHz
- Distortion
- ≤1%
FAQ
Before you choose Z02
What is the Z02 driver configuration?
Z02 uses a 2-driver dynamic-planar hybrid configuration: a 10mm graphene dynamic driver for low frequencies and a miniature planar magnetic tweeter for vocal, treble, and upper-frequency detail.
What does the miniature planar magnetic tweeter do?
The planar magnetic tweeter is embedded in the 3D-printed shell to reduce sound pressure decay and unwanted resonance typical of tubed balanced armature layouts. It is designed for extended high-frequency response, low distortion, fast transient response, and consistent soundstage reproduction.
What does the graphene dynamic driver add?
The 10mm graphene dynamic driver uses an ultra-thin rigid diaphragm and physical low-pass filtering so it can handle bass and lower-frequency energy with minimal overlap against the planar tweeter.
How is the Z02 enclosure made?
Z02 uses AAW's third-generation digital enclosure and acoustic chamber process. Driver and nozzle placements are simulated through many iterations, then 3D printed for precision and production consistency.

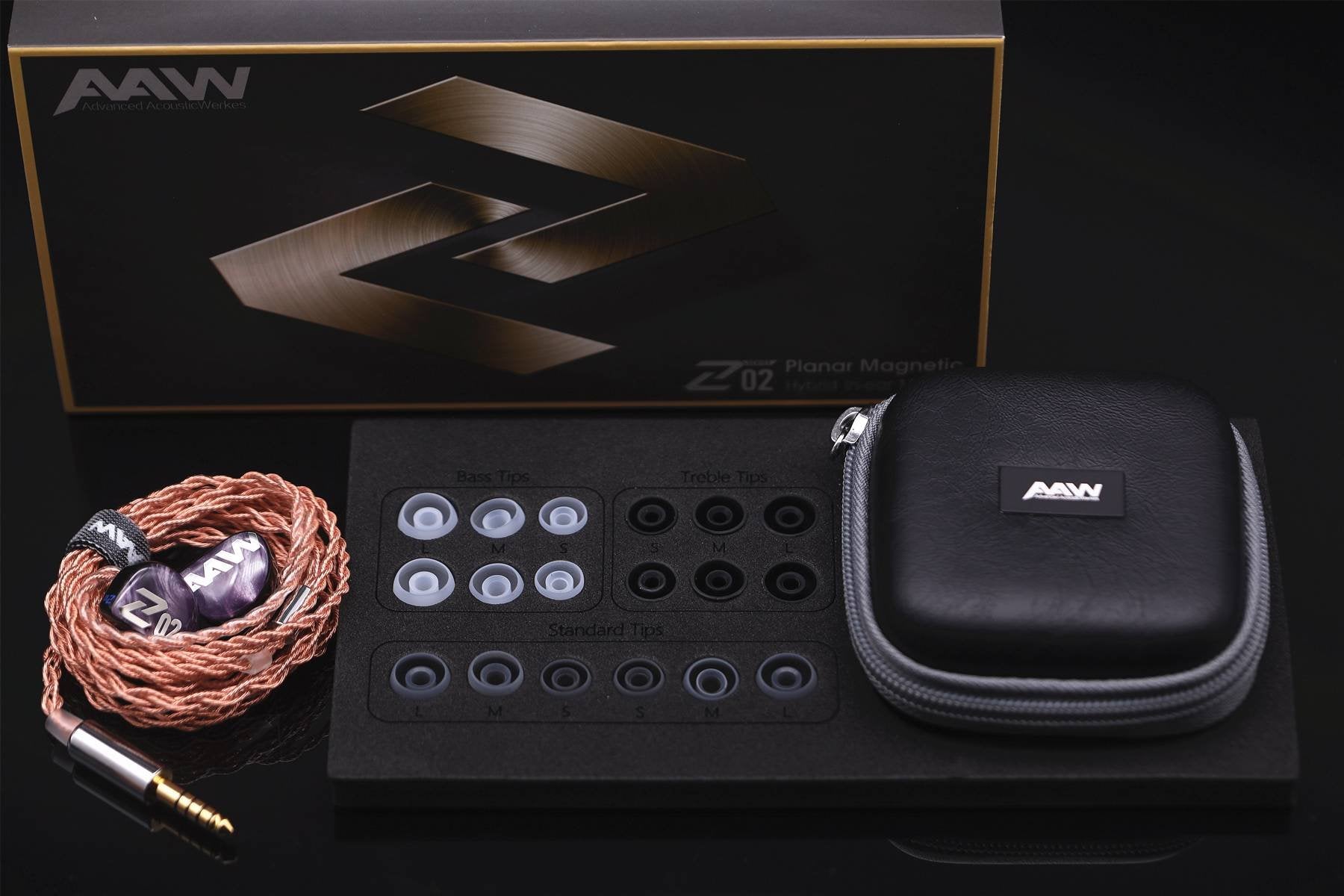

What comes in the box?
48 inch Brevity OCC copper detachable cable, AAW carrying case, assorted ear tips, and a 1-year limited warranty.
Owner Reviews
Z02 listening impressions
Customer review archiveRead owner impressions from the Judge.me review archive.
Built by Advanced AcousticWerkes
Singapore IEM craft, shaped by listening.
Those who listen will find the way.
Advanced AcousticWerkes (AAW) is a Singapore-based IEM manufacturer founded in 2014 by Kevin Wang. AAW designs and builds custom and universal in-ear monitors across dynamic, balanced armature, electrostatic, planar, and hybrid platforms.
Z02 brings that approach into a compact dynamic-planar hybrid platform: miniature planar tweeter, 10mm graphene dynamic driver, physical crossover, OCC copper internal wire, and AAW's third-generation 3D-printed acoustic chamber design.
